ATX Mother Board

ATX Mother Board는 시리즈는 크기가 305 x 244 mm이며 최대 7개의 확장 슬롯을 지원합니다. Intel Core 계열 프로세서를 사용하는 어드밴텍 ATX 산업용 마더보드는 고성능을 실현하며, 폭넓은 컴퓨팅 능력을 제공합니다.

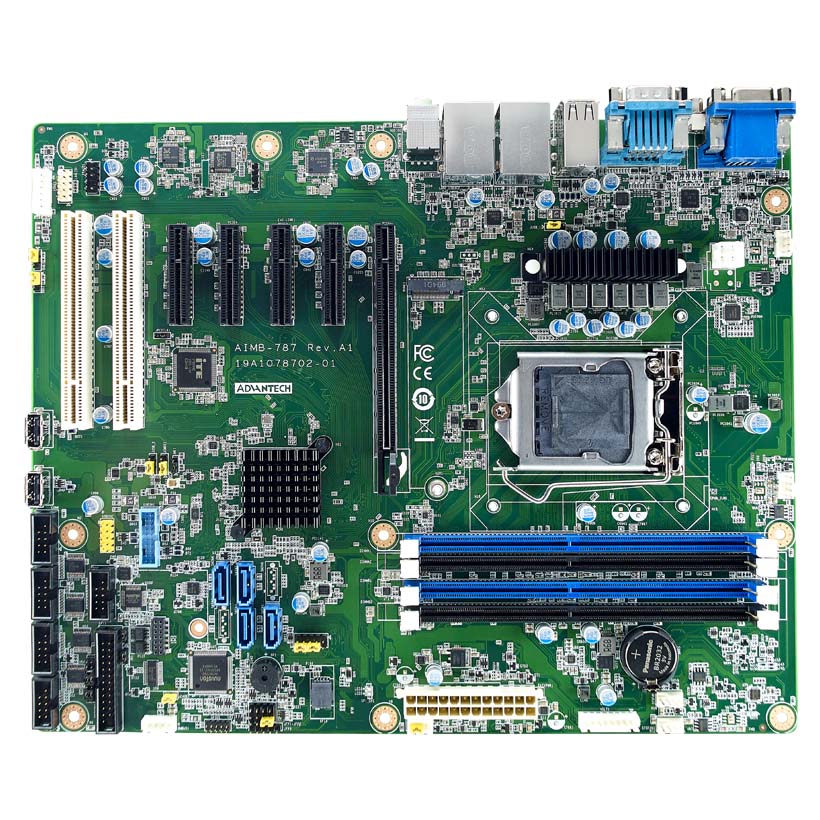

AIMB-787

·Intel® 10th generation Core™ i9/i7/i5/i3/Pentium®/Celeron® processor with Q470E chipset

·Four DIMM sockets up to 128 GB DDR4 2933

·Triple display DP/DVI-D/VGA and dual GbE LAN

·M.2, SATA RAID 0, 1, 5, 10, USB 3.2

·Supports Intel vPro, AMT & TPM technologies

·Note 1: TPM module is required to enable Intel vPro and TPM technologies.

·Note 2: Legacy platform is not supported.

AIMB-707

·Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H420E chipset

·Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB

·Support VGA and DVI display

·M.2, SATA 3.0, USB 3.2, dual GbEs

·5 RS-232 and 1 RS-232/422/485 serial ports

·1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots

·Note: Legacy platform is not supported.

AIMB-786

·Intel® 8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® processor with Q370chipset

·Four DIMM sockets up to 128 GB DDR4 2400/2666

·Triple display VGA/DVI-D/DP and dual GbE LAN

·SATA RAID 0, 1, 5, 10, USB 3.1

·Supports Intel vPro, AMT & TPM technologies

·Note 1: TPM module is required to enable Intel vPro and TPM technologies.

·Note 2: Intel 8th generation processors only support Windows 10 (64-bit).

AIMB-706

·Intel® 8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® processor withH310 chipset

·Dual channel (Non-ECC) DDR4 2400/2666 up to 64 GB

·Support VGA and DVI display

·SATA 3.0, USB 3.1, dual GbEs

·5 RS-232 and 1 RS-232/422/485 serial ports

·1 PCIe x16 (Gen3) and 1 PCIe x4 (Gen2), and 5 PCI expansion slots

·Note: Intel 8th generation processors only support Windows 10 (64-bit).

AIMB-701

·Supports Intel® Core™ i7/i5/i3/Pentium processor with H61 chipset

·Two DIMM sockets support up to 16 GB DDR3 1066/1333

·Supports dual display VGA/DVI-D and dual GbE LAN

·Supports RS232/422/485 with auto flow control

·Supports One PCIe x16 and 5 PCI expansion slots

AIMB-705

·Intel 6th generation Core i7/i5/i3/pentium processor

·Dual channel (Non-ECC) DDR4 1866/2133 up to 32GB

·Supports VGA and DVI display

·Supports SATA3.0, USB3.0, dual GbEs

·Support 5 RS-232 and 1 RS-232/422/485 serial ports

·1 PCIe x16 (Gen3) and 1 PCIe x4 (Gen3), and 5 PCI expansion slots

AIMB-767

·Intel® G41 chipset supports 800/1066/1333 MHz FSB

·Dual channel DDR3 800/1066 SDRAM up to 4 GB

·Supports dual display, VGA and DVI-D

·Supports dual core and quad core processors with 45nm processing

·Supports SATA RAID 0,1,5,10

·Supports Embedded software APIs and utilities

AIMB-769

·Intel® G41 chipset supports 800/1066/1333 MHz FSB

·Dual channel DDR3 800/1066 SDRAM up to 4 GB

·Chipset integraged VGA

·Supports dual core and quad core processors with 45 nm processing

·Supports single 10/100/1000 Mbps Ethernet via dedicated PCIe x1 bus

·Supports Embedded Software APIs and Utilities

AIMB-780

·Supports Intel® Core™ i7/i5/i3/Pentium®/Xeon® processor with Q57/3450 chipset

·Four DIMM sockets support up to 16 GB DDR3 800/1066/1333

·Supports dual display VGA and DVI and dual GbE LAN

·Supports SATA RAID 0, 1, 5, 10, AMT6.0, TPM1.2 (optional)

·Supports embedded software APIs and utilities

AIMB-781

·Supports Intel® Core™ i7/i5/i3/Pentium processor with Q67/B65 chipset

·Four DIMM sockets support up to 32 GB DDR3 1066/1333

·Supports dual display VGA and DVI and dual GbE LAN

·Supports SATA RAID 0, 1, 5, 10, AMT7.0, TPM 1.2 (optional)

·Supports embedded software APIs and utilities

AIMB-782

·3rd generation Intel® Core™ processor-based platform

·Supports Intel 3rd generation Core i7/i5/i3/Pentium processor with Q77 chipset

·Four DIMM sockets support up to 32 GB DDR3 1333/1600

·Supports dual display VGA/DVI-D and dual GbE LAN

·Supports SATA RAID 0, 1, 5, 10, AMT8.0, USB 3.0

·Supports Advantech LPC modules of TPM

AIMB-784

·Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset

·Four DIMM sockets support up to 32 GB DDR3 1333/1600

·Supports triple display VGA/2 DVI-D and dual GbE LAN

·Supports SATA RAID 0, 1, 5, 10, AMT9.0, USB 3.0

·Supports Advantech LPC modules of TPM

·Software APIs: SMBus / H/W Monitor / Watchdog

·Utilities: Monitoring

AIMB-785

·Supports Intel® 6th and 7th Core™ i7/i5/i3/Pentium/Celeron processor with Q170 chipset

·Four DIMM sockets support up to 64 GB DDR4 1866/2133

·Supports triple display VGA/2 DVI-D and dual GbE LAN

·Supports SATA RAID 0, 1, 5, 10, USB 3.0

·Supports Intel vPro, AMT 11.0 & TPM technologies

·Note 1: TPM module is required to enable Intel vPro and TPM technologies.

·Note 2: Intel 7th generation processors only support Windows 10 (64-bit).
